Spot Welding Machine

Spot Welding Machine is also called Dent Pulling Machine, and used for dent pulling, carbon rod heating and shrinking, single sides spot welding, stud bolt welding, sheet plate cutting and sheet metal welding…

ANONA Spot Welding Machine is with microprocessor control system optimizes the welding parameters, user friendly design, big LCD digital display, high put power, easy to move and simple to operate.

This Machine will be your important helper.

1 2

Technical parameter

Model No.
Input Voltage
Max. Rated Input Poweer
Input Current
Output Current
Output Voltage

AN-DP-10
380V 50/60HZ
15.5 KVA
20-70 A
200-5800 A
2.5-12.5 V

AN-DP-20
15.5 KVA
15.5 KVA
20-75 A
200-7000 A
2.5-12.6 V

Technical parameter

Model No.
Input Voltage
Max. Rated Input Poweer
Floating Voltage
Welding Current
Duty Cycle
Adjustable Gear
Automatic Working TIme

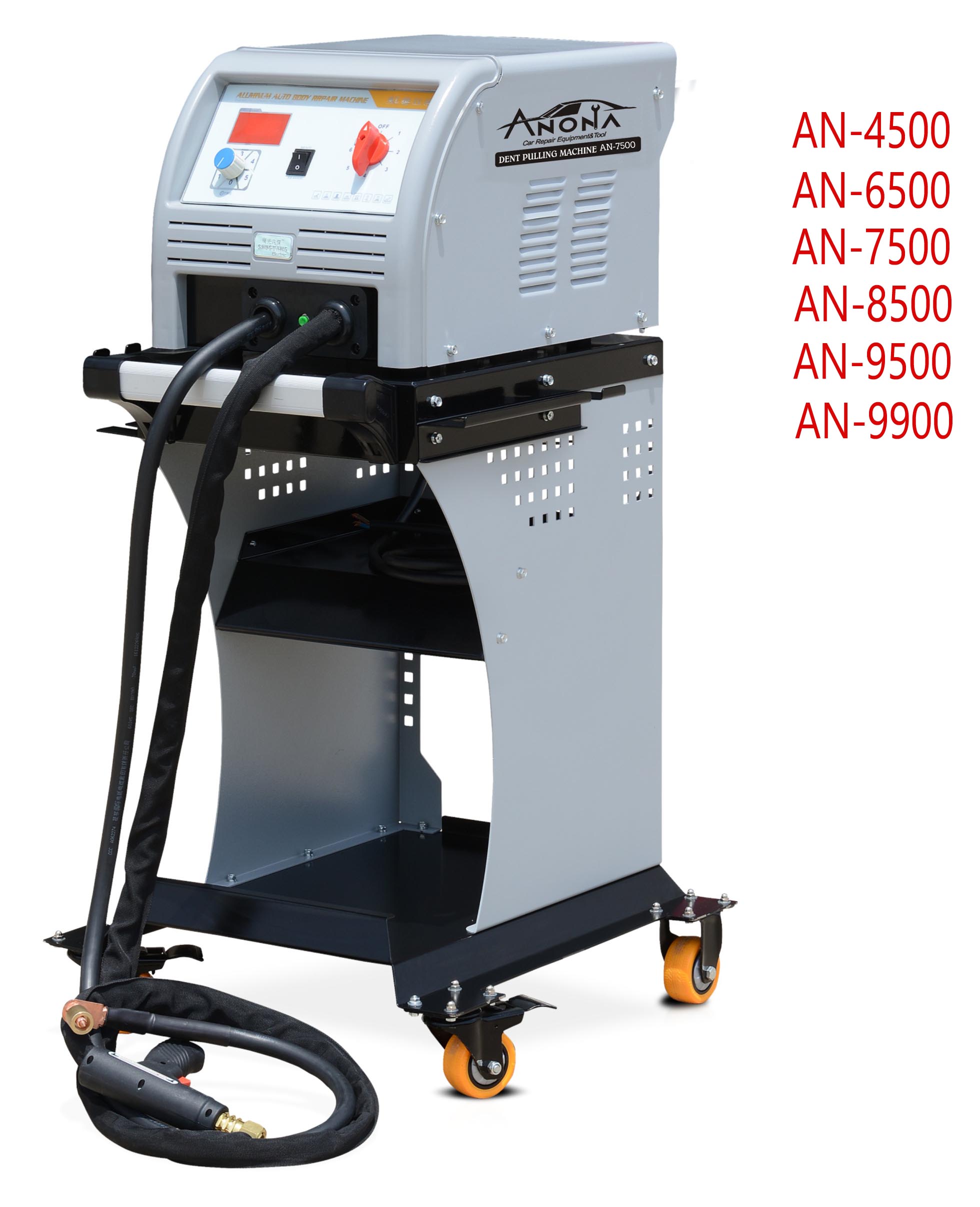

AN-4500
1 PH / 220 V
3.5 KVA
6-12 V
200-4500 A
15%
7 level
0.1-2.5S

AN-6500
1 PH / 220 V
4 KVA
6-12 V
200-6500 A
15%
7 level
0.1-2.5S

AN-7500
1 PH / 220 V
4.5 KVA
6-12 V
200-7500 A
15%
7 level
0.1-2.5S

Model No.
Input Voltage
Max. Rated Input Poweer
Floating Voltage
Welding Current
Duty Cycle
Adjustable Gear
Automatic Working TIme

AN-8500
1 PH / 220 V
5 KVA
6-12 V
200- 8500 A
15%
7 level
0.1-2.5S

AN-9500
1 PH / 220 V
5.5 KVA
6-12 V
200- 9500 A
15%
7 level
0.1-2.5S

AN-9900
1 PH / 220 V
6 KVA
6-12 V
200- 9900 A
15%
7 level
0.1-2.5S

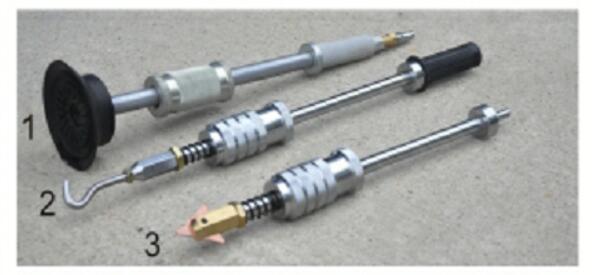

Pneumatic Sucker. (Not Free)

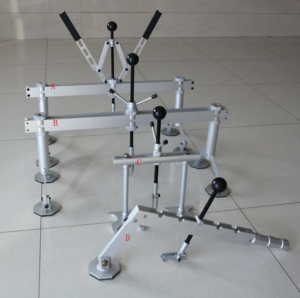

Multifunction Puller
Spot Welding Puller.

1 2

Technical parameter

Model No.
Input Voltage
Max. Rated Input Poweer
Input Current
Output Current

AN-DP-60L
380V 50/60HZ
10.9 KVA
20-60 A
200-3500 A

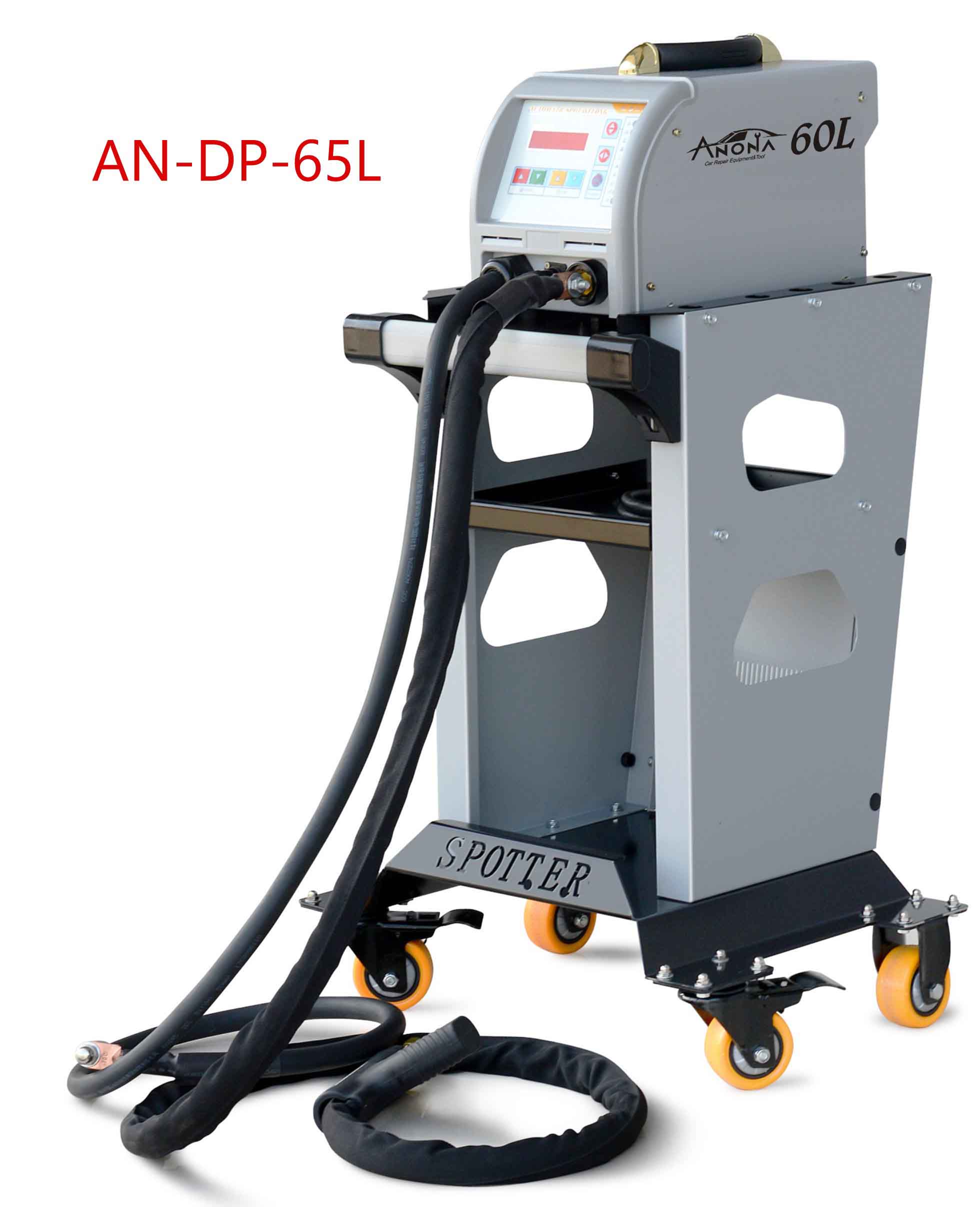

AN-DP-65L
380V 50/60HZ
10.9 KVA
20-65 A
200-4200 A

Technical parameter

Model No.
Input Voltage
Frequency
Max. Rated Input Poweer
Fussing Current
Output Current
One-side Welding Thickness

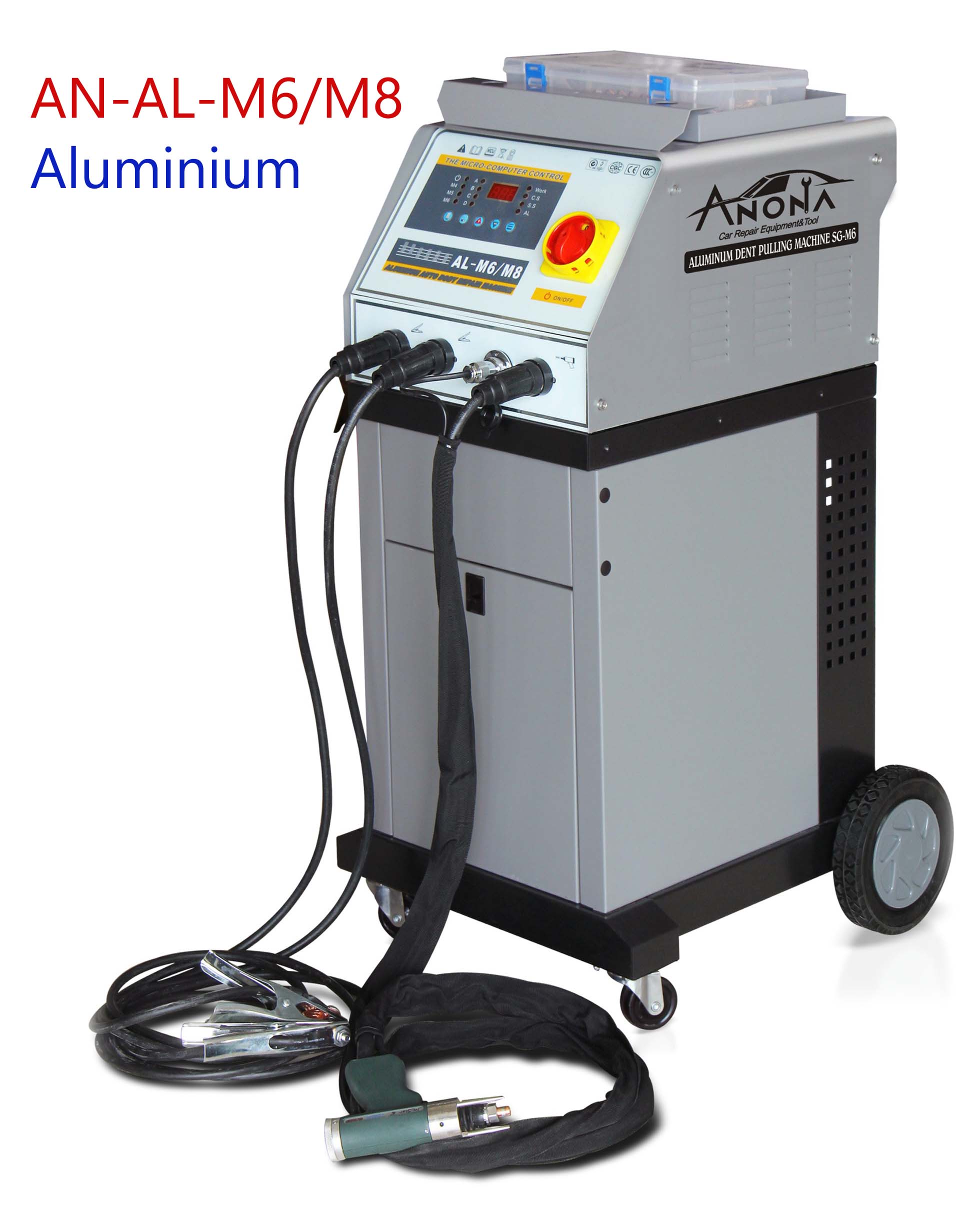

AN-AL-M6/M8
1PH 220V
50Hz / 60hz
1.5 KVA
15 A
20-200 VDC
0.8 – 3 mm

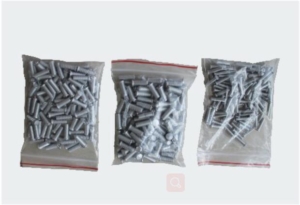

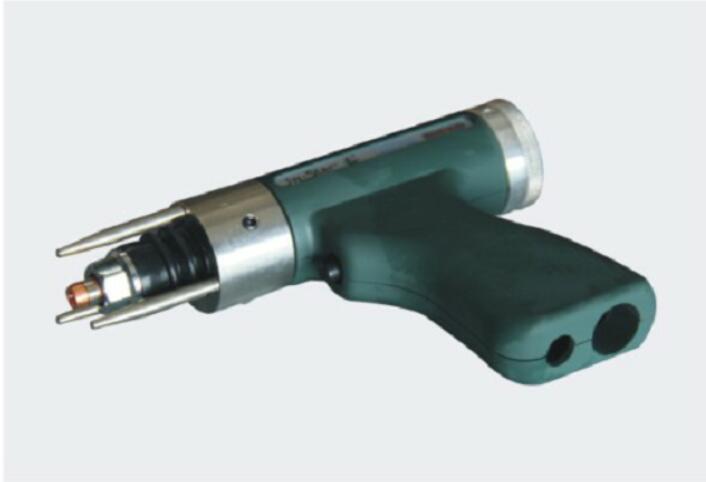

Special Welding Aluminium Nail

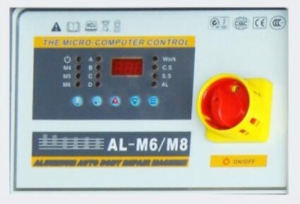

The operating system for this aluminnium dent pulling machine includes nut diameter choice, parameter memory,material choice. Each welding voltage could be adjusted.It can shows the charging voltage of capacitance.

Technical parameter

Model No.
Input Voltage
Max. Rated Input Poweer
Input Current
Output Current
Output Voltage
Welding Time
Floating Voltage

AN-7500/M6
1PH 220V
18.8 KVA
20-85 A
200-7500 A
2.5 – 12.5V
0-99 S
50-150 V

This Spot Welding Machine can repair and weld different aluminium body and steel body without damage of metallic coating on the back and painted surface. It can weld 4mm-6mm aluminium nails and steel nails and stainless steel nails. Each kind of nail has 4 sets of welding parameters in stored, and a total of 36 sets of welding parameters are stored.
