Retractable Air Hose Reel

A reliable and durable compressed air hose reel must have a focus feature, which is withstanding the wear and tear. For a busy body shop environment, the good quality and easy use of hose reel is the most frequent use of tools.

ANONA provides an excellent hose reel for any of automotive repair shops, it is an appropriate fitting for use with air tools, airbrushes, inflators, and more.

Main Features

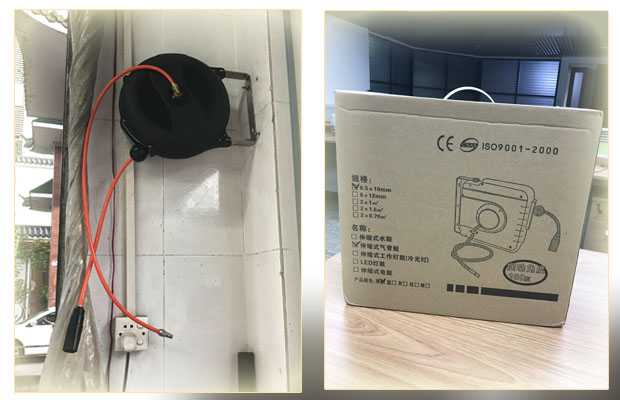

  • It can fast fasten to walls, ceiling, doors, or any solid place.
  • The outlet pipe hose extends from 1 up to 12M by just pulling and then stopping at any of your desired lengths.
  • To retract, give the hose a soft jerk, then it quickly releases the hose and rewinds automatically.
  • Working temperature:-15℃—40℃.
  • Max working pressure: 16 Bar.
  • The inlet pipe length is 1M.

Technical Data for Retractable Air Hose Reel

  • Part Code
  • Inner Dia.
  • Outer Dia.
  • Length
  • Air Inlet Length
  • Working Pressure
  • Gross Weight
  • QG6.5-10
  • 6.5mm
  • 10mm
  • 10m
  • 1m
  • 13bar
  • 4.0kg
  • QG6.5-12
  • 6.5mm
  • 10mm
  • 12m
  • 1m
  • 13bar
  • 4.1kg
  • QG8.0-10
  • 8.0mm
  • 12mm
  • 10m
  • 1m
  • 13bar
  • 4.1kg
  • QG8.0-12
  • 8.0mm
  • 12mm
  • 12m
  • 1m
  • 13bar
  • 4.2kg

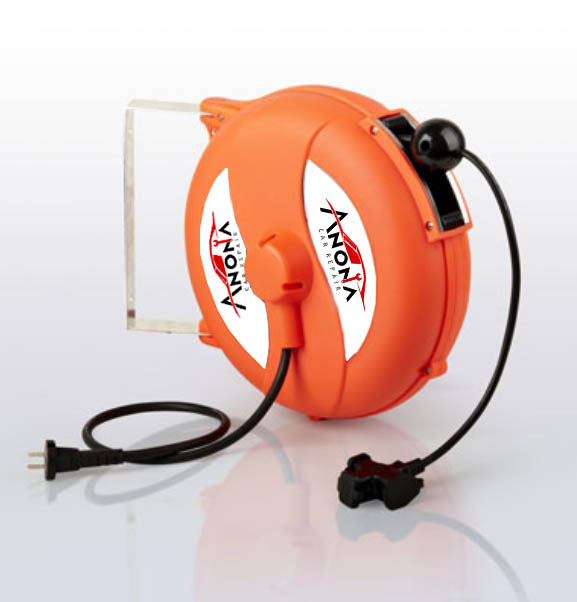

Electric Cable Hose Reel

Electric brush contact is providing stable circuit connection.

Technical Data for Retractable Electric Cable Hose Reel

  • Part Code
  • Wire Size
  • Input Voltage
  • Cable Length
  • Power
  • Working Temperature
  • Protection Class
  • Package Size
  • Gross Weight
  • DG10-10
  • 2 x 1.0 mm2
  • 230V
  • 10m
  • 1000W
  • -15℃ ~ +50℃
  • IP42
  • 43x18x39cm
  • 4.0 KG
  • DG10-12
  • 2 x 1.0 mm2
  • 230V
  • 12m
  • 1000W
  • -15℃ ~ +50℃
  • IP42
  • 43x18x39cm
  • 4.1
  • DG15-10
  • 2 x 1.5 mm2
  • 230V
  • 10m
  • 1500W
  • -15℃ ~ +50℃
  • IP42
  • 43x18x39cm
  • 4.1 KG
  • DG15-12
  • 2×1.5mm2
  • 230V
  • 12m
  • 1500W
  • -15℃ ~ +50℃
  • IP42
  • 43x18x39cm
  • 4.4 KG

Options for purchasing

REPAIRING LIGHT

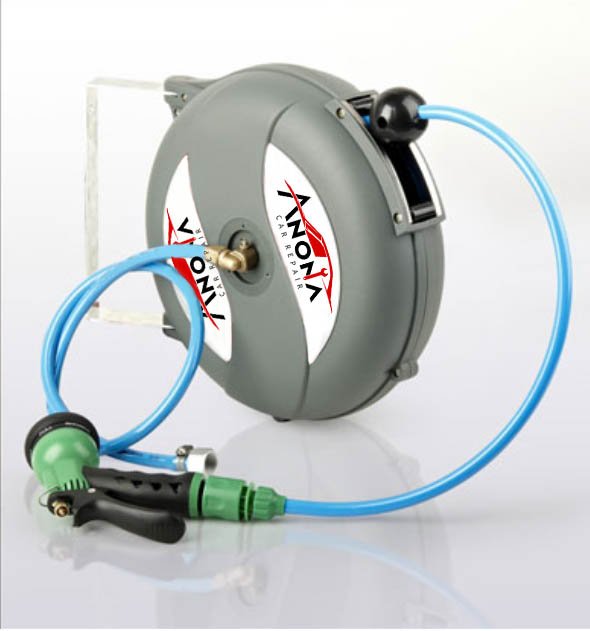

Retractable Water Hose Reel

Water hose material is high quality imported polyether Mesh.

Technical Data of Retractable Water Cable Hose Reel

  • Part Code
  • Hose Inner Dia. x Outer Dia
  • Hose Material
  • Outlet Hose Length
  • Inlet Hose Length
  • Working Pressure
  • Working Temperature
  • Package Size
  • Gross Weight
  • WG- 1280-10
  • 8 x 12 mm
  • Polyether Mesh
  • 10m
  • 1m
  • 8 Bar
  • 1℃ ~ 40℃
  • 43x18x39cm
  • 4.1 KG
  • WG- 1280-12
  • 8 x 12 mm
  • Polyether Mesh
  • 12m
  • 1m
  • 8 Bar
  • 1℃ ~ 40℃
  • 43x18x39cm
  • 4.2 KG

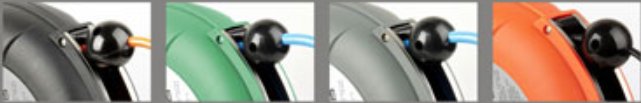

Color for choosing

air hose reel
