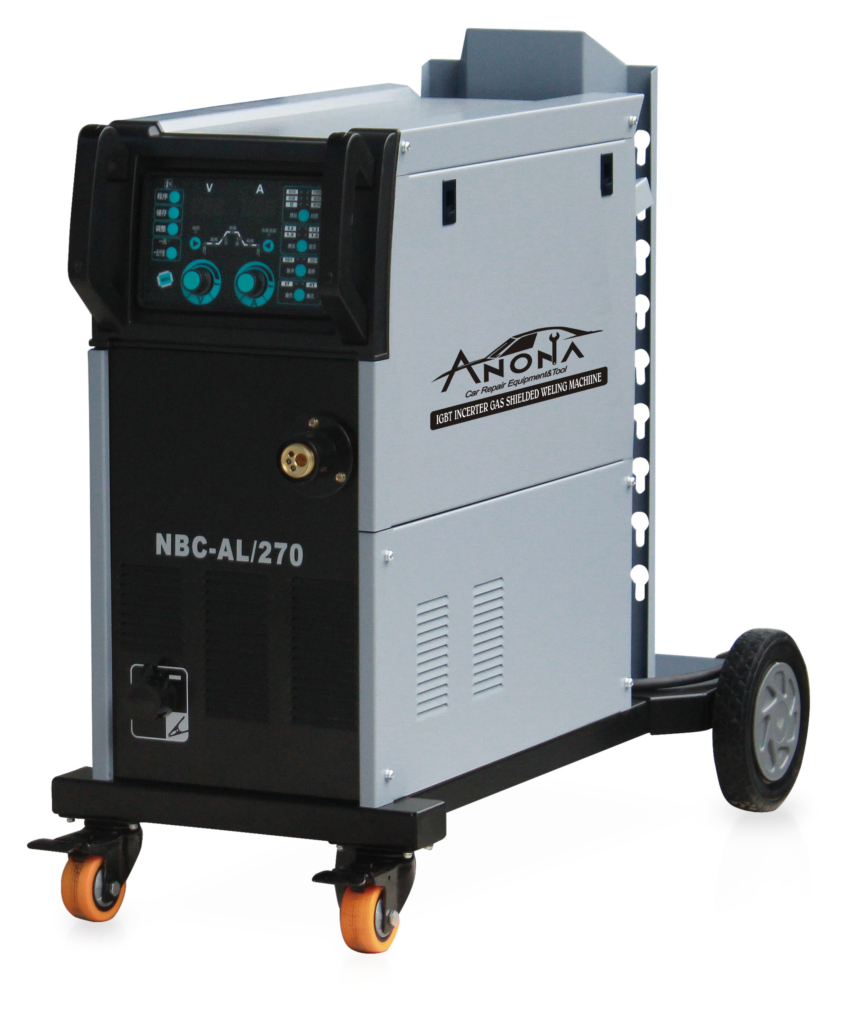

MIG Welder with Cart

The AN-HJ-270AL MIG Welder with Cart is the ideal choice for anybody who want to weld like one. It delivers the max. 270 amps of pure power in a heavy-duty cabinet with trolley.

The Semi-Automatic Argon gas MIG Welder is used for ferrous metallic materials such as low carbon steel, low alloy steel, high strength low alloy steel, stainless steel, iron, aluminium and nickel.

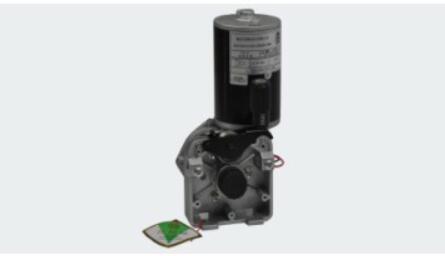

The wire feeding circuit adopts frequency conversion modulation and with a four-roll dual drive system, and the wire feeding force is large, which effectively ensures the smoothness of the wire feeding during the welding process.

AN-HJ-270AL MIG(Argon Gas) Welder

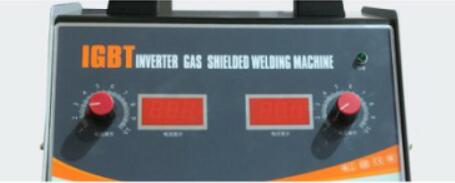

IGBG Inverter

Technical Parameter

Model No.
Input Voltage
Input Power
Rated Input Current
Max. Output Voltage
Duty Cycle
No-load Output Volt.
Efficiency
Power Factory
Insulation Class
AL Wire Dia.

AN-HJ-270AL
3PH 380V 50/60HZ
11.5 KVA
17 A
270 A /28 V
280A /65 %
50V
≥ 0.90
≥ 0.95
F
0.8-1.2 mm

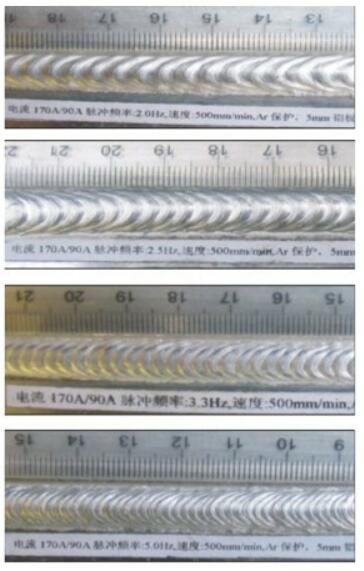

Aluminium Sheet Weldping Photos

Frequency is 2.0Hz, 2.5Hz, 3.3Hz, 5.0Hz

Technical Parameter

Model No.
Input Voltage
Rated Input Current
Output Current
Output Voltage
Duty Cycle
No-load Loss
Efficiency
Power Factor
W.Feeding Mechanism
Wire Feeding Speed
Wire Plate Diameter
Wire Diameter
Insulation Class
Sheel Protection G.
Applicable Thickness

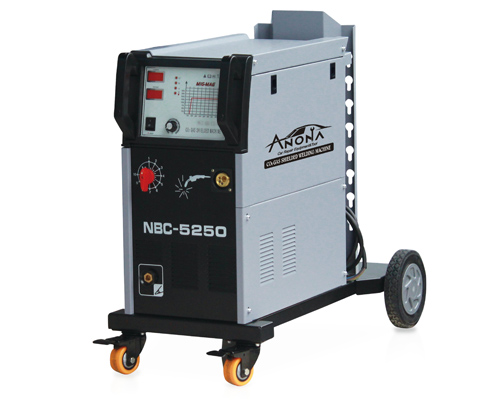

AN-HJ-5250
3PH 380V 50/60HZ
17.5 A
40-250 A
16- 26.5 V
60 %
40 W
85%
0.93
Built- In
2.5- 13
270mm
0.8/0.9/1.0 mm
F
IP 21
≥ 0.5mm

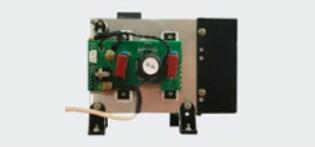

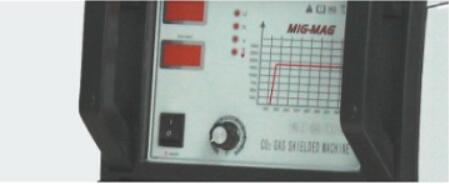

Displaying the voltage and current, monitoring 3 phase network voltage and marking welding characteristic curve.

High quality CO2 Welding Torch with thickened copper pipe from European premium brand.

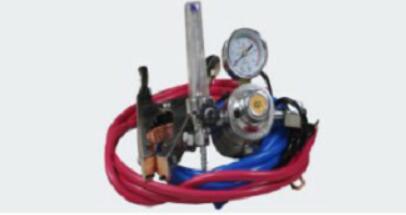

The decompressor is with sintered bronze filter for preventing impurity from entering the gas regulator to ensure the use well and extend the service life.
