3D Wheel Alignment Machines

If you are looking for 3D wheel alignment machines, then Anona is the right choice. Anona offers a tool of wheel alignment in a 3D format.

As a car workshop owner or a vehicle trader, you don’t need to take a risk and relying on the human instinct for manual wheel alignment. The 3D wheel alignment machines deliver the 100 percent accurate measurement to perform calibration and align the wheel correctly. However, human involvement has concerned with monitoring and controlling the clamp and machine performance.

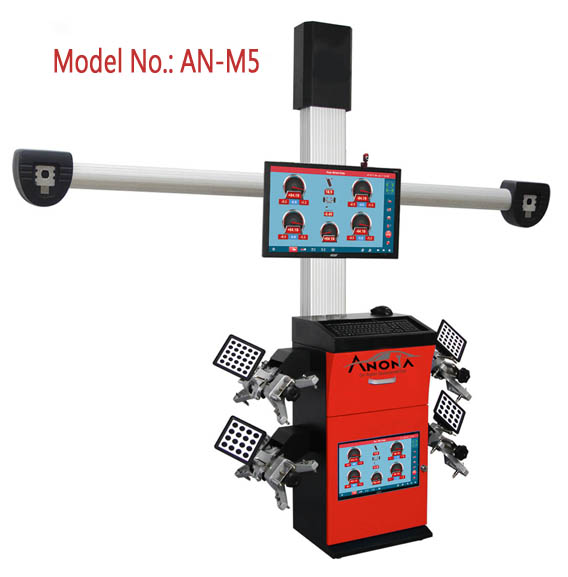

Specification for AN-M1

Power: Single Phase, 220 V

Wheel Size: 11’’-23’’

Monitor: 21.5’’

OS: Windows 7

Camera Resolution：5MP

Measurement and Reading

1. Toe

2. Camber

3. Caster

4. S.A.I (KPI)

5. Thrust Angle

6. Chassis Wheelbase

7. Wheel Track

8. Rolling Radius

9. Set- Back

Specification for AN-M5

Power: Single Phase, 220 V

Wheel Size: 11’’-23’’

Monitor: 21.5’’ and 19’’

OS: Windows 7

Camera Resolution：5MP

Measurement and Reading

1. Toe

2. Camber

3. Caster

4. S.A.I (KPI)

5. Thrust Angle

6. Chassis Wheelbase

7. Wheel Track

8. Rolling Radius

9. Set- Back

Multi-Languages are available for choice

Such as Simplified Chinese, Traditional Chinese, English, Portuguese, Arabic,

Spanish, Russian, Japanese, Korean, French, German, Italian, etc.

Model No.	AN-M1	AN-M2
Packing	Packing Size: 1.6 CBM
	Gross Weight: 300 kg

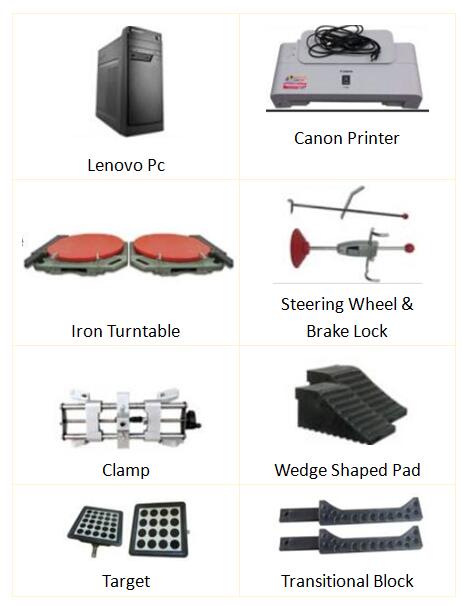

	Accessories
	1. Cabinet for PC * 1 pc
	2. PC *1 pc
	3. 21.5’’ LCD Display * 1 pc
	4. Printer * 1 pc (CANON)
	5. Post & Camera Beam * 2 pcs
	6. Wedge Pad * 2 pcs
	7. Turntable & Transition Block * 4 pcs
	8. Clamp& Target * 8 pcs
	9. Steering Wheel Holder * 1 pc
	10. Pedal Brake Depresser * 1 pc

You can check the four-wheel alignment data on your mobile phone

after installing our APPLICATION in your Android cell phone system

Global vehicle’s database

Original vehicle database: Owning more than 25,000 original vehicle databases from different regions around the world.

WDM-B contains automatic capability by following height tracking of the vehicle. The technical coworker can low and raise the lift accordingly during the steer turning and adjustment process.

Tablet PC is optional for long-distance alignment operations through Bluetooth available.

An additional 21’’ Monitor is optional to bring more convenience for operators when working under cars.

Features of 3D Wheel Alignment Machines

Unique imaging system

allows the left and right cameras metering respectively, to ensure the machine can be used normally under complex light condition.

Intelligent LED Flash Control System

provides left and right metering, flash, and exposure respectively.

Steering Wheel Quick Adjustment

the operator can do steering wheel adjustment only if other alignment angles are in good condition.

Hand Mouse Intelligent System

shelter one point from target to achieve “next” operation, two points for “confirm”, and three points for “the last step”.

Offside Warning System

with warning box showing in the screen to make sure targets positioned accurately when installation.

Advantages

Automatic Compensation without Push
Both automatic compensation without the push and push-type compensation are available according to different operation preferences.
All our 3D Wheel Aligners are under accurate calibration before shipment; you can use it directly after installation.
A stable and reliable LED system powered by computer, greatly extends service life.
E-MANUAL and animation demo for vehicle adjustment are all available.
A customized vehicle database is available.
Language Available—English, Russian, Spanish, French, Arabic, and Portuguese.

Specification of 3D Wheel Alignment Machines

Name	Accuracy	Accuracy Range	Measuring Range
Total Toe-In	±2’	±4°	±20°
Camber	±2’	±8°	±15°
Caster	±3’	±20°	±20°
K.P.I	±3’	±20°	±20°
Thrust Angle	±2’	±2°	±10°
Front Wheel Set Back	±2’	±2°	±4°
Rear Wheel Set Back	±2’	±2°	±4°
Tread Difference	±2’	±2°	±4°
Wheelbase Difference	±2’	±2°	±4°
